Brand Name : | IDP |
Model Number : | ID471AFT |
Certification : | CE,Rohs,FCC,CCC etc |
Price : | To be checked |
Payment Terms : | T/T |
Supply Ability : | 1000pieces/3 weeks |
Delivery Time : | 1 – 7 working days |

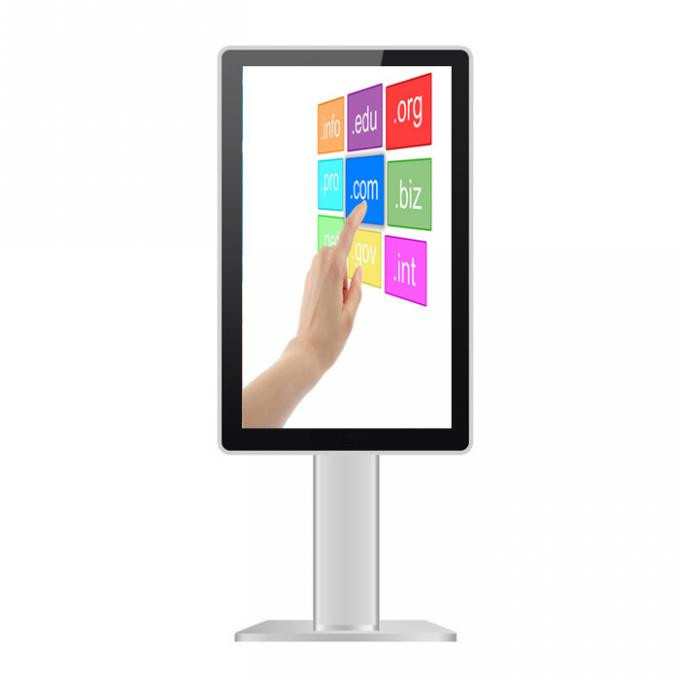

1920x1080 60hz Monitor Kiosk 47 Inch HDMI Touch Screen Display
Suppliers
Main features of touch screen computer monitor:
Support split screen, one screen window is divided into several
sections for different usages.
Scrolling message, the pre-set message can be displayed.
Smart forced air cooling system or air-conditioner system to ensure
stable and reliable performance.
Easy upgraded if the advertisement business layout changes.
Remotely manage devices in different locations by internet.
OEM/ODM service: digital signage enclosure, functions etc.
Applications for 47 inch smart industrial touch screen display:
shopping street, plaza, gas station, entrance of store, university,
industrial park, sports event field, citizen park, scenic spot, CBD
area etc.
Specifications of smart touch screen digital signage display:
Parameters | ||
Panel Data | Panel Brand | For Samsung/LG |
Size | 47 inch | |
Native Resolution | 1920X1080 | |
Surface | Antiglare, hard coating | |
Active Area | 1039.68(H) X 584.82(V)mm | |
Dot Pitch | 0.1805(H) X 0.5415(V)mm | |
Brightness | 500 cd/m² | |
Contrast Ratio | 4000:1 | |
Response Time | 12ms | |
View Angle | 178°(H) / 178°(V) | |
Frequency | 60Hz | |
Network Data | Android | ARM Cortex-A17 |
RAM | 2GB(4GB for optional) | |
Land flash | 8GB(option, up to 32GB) | |
Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding | |
Audio | Integrated HI-FI 100dB Audio Codec | |
Picture format | JPG, PNG, JPEG... | |
TXT | YES | |
Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
WiFi | Built-in Wifi(802.11b/g/n) | |
General Information | Image Resolution | 5000 x 5000 px Max |
Color | Silver, Black, White or Customized | |
Material | Fine Aluminum + Tempered Glass | |
Speaker | 10W x2 | |
Remote Control | IR Remote Control | |
Menu Language | English, Germany, Russian, French and Spanish etc | |
Power Supply | AC 110 ~ 240V | |
Operating Altitude | 0~3,000 meters | |
Storage Humidity | 0 ~ 90% | |
Touch Data | Touch screen piont | 2,6,10,16,20,32,40,50,100 |
Resolution | 32768*32768 | |
Scan speed | 50P/S | |
Position accuracy | ±1.5mm | |
Glass above the panel | Glossy glass 4 mm | |
Respone time | 4ms | |
Power Consumption | 110MA | |
Interface | USB |
At the beginning people went to change the advertisement in each
digital signage(device, hereinafter) one by one. Assuming there are
800 devices, it will be time-and-labor consuming. In order to solve
this problem, one embedded solution came out. It connected the
devices together to a server by wifi – network lcd advertising
display. Actually it was not good enough, especially when the wifi
signal is weak or there are too many devices.
With the improvement and popularization of Android OS, the light of
real network digital signage appeared. The Android digital
signage(device, hereinafter) is a perfect solution for remotely
management. First Connect the devices to the internet either by
wifi, LAN or 3G. Second open your pc and deliver the advertisement
to the devices easily, no matter where the devices they locate. The
stable Android OS makes the device work 7/24 hours safe and sound.
What’s more the Android system provides an access to users which
make it possible to customize personalized applications.
Note:
1. OEM/ODM for various functionalities, designs , shapes etc.
2. Optional touch screen settings.
3. The details are subject to upgraded without notice in advance.
![]() |
