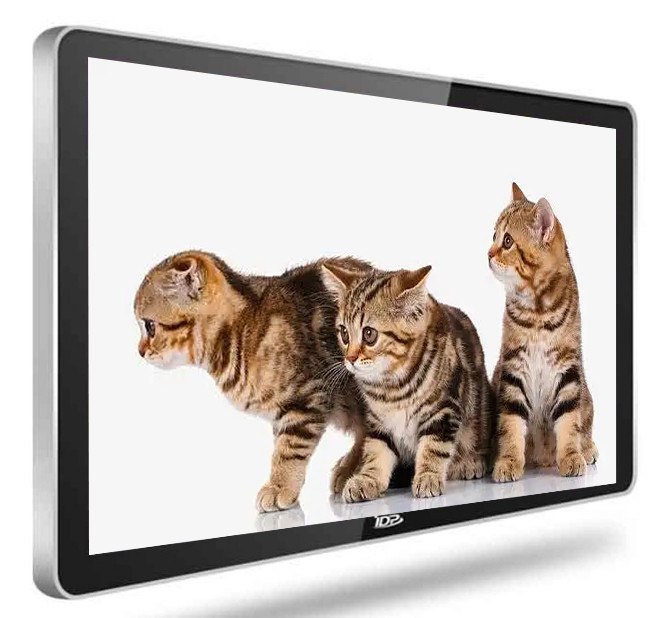

SKD 43 Inch Public Information Displays Touch Screen With High
Sensitive
With the IDP 43-inch transmissive multi-touch display, you can
easily and creatively present your content. The touchscreen that
can be display advertisements or integrated in self-service kiosks
to provide customers or visitors with free browsing and interactive
information. The touchscreen is suitable for a variety of 24/7
continuous business environments. Public information displays for
customized services or information inquiries, interactive showcases
to promote products and attract product attention. Digital signage
or touch table for attracting and entertaining visitors.
Main features:
1. Plug and play easy working.
2. Touch screen options available.
3. Supports external Media Players or PC’s Commercial 24/7 display.
4. High definition 1920×1080(FHD) native resolution.
5. Wide view angle, high brightness and industrial design.
6. Fast and quick touch response for excellent user experience.
7. All in one multi-touch display available for different
applications.
Specifications:
| Panel Data | Size | 43 inch |
| Native Resolution | 1920X1080 |
| Display Ratio | 16:9 |
| Display Color | 16.7M |
| Contrast Ratio | 4000:1 |
| Brightness | 500 cd/m² |
| Dot Pitch | 0.1634(H)X0.4902(V) mm |
| Active Area | 941.184(W)X529.416(H) mm |
| View Angle | 178°/178°(L+R/U+D) |
| Lifetime | 60000 hours |
| Voltage | 100V-240V |
| Response Time | 8ms |
| General Information | Material | Fine Aluminum + Glossy glass |
Main Interfaces
| HDMI x 1 |
| DVI x 1 |
| VGA x 1 |
| Color | Silver, Black,, White or Customized |
| Control way | IR Remote Control |
| Speaker | 10W x 2 |
| Power Supply | AC 110 ~ 240V, 50/60 Hz |
| Operation Temperature | 0 ℃~40℃ |
| Operation Humidity | 20% ~ 80% |
| Operating Altitude | 0~3,000 meters |
| Touch Data | Touch screen point | Photon waving surface sensing true 10 point touch(up to 40 point) |
| Resolution | 32768*32768 |
| Scan speed | 50P/S |
| Position accuracy | ±1.5mm |
| Glass above the panel | Glossy glass 4 mm |
| Response time | 4ms |
| Power Consumption | 110mA |
| Interface | USB |
Applications:
Business shops: chain stores, cooperate building, shopping mall,
hotel and restaurant etc.
Government or non-profit organization: bank, security department,
insurance company, book stores, museum and school etc.
Entertainment: cinema, cafe shop, gym, scenic spot and bars etc.
Traffic department: metro station, traffic control room, airport
etc.
Notes:
1. OEM/ODM for various functionalities, designs, shapes etc.
2. Warranty time: Standard 12 months (24 months/36 months warranty
for option).
3. The details are subject to upgraded without notice in advance.
